Plant Equipments

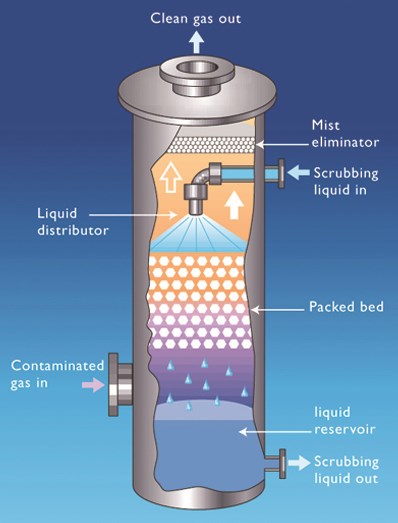

Water Scrubbers
Water scrubbers are specially designed to remove impurities from raw gas. Let it be in Distilleries, Breweries or fertilizer based, the BIG Group designed water scrubbers are designed with complete SS internals and with the latest scrubbing technology so that every molecule of CO2 is washed with water. CIP is the latest edition, where all the scrubbers are equipped with auto CIP procedure. The water scrubbers, whether High Pressure or Low Pressure, are both designed to maintain minimum water levels so that there is no loss of CO2 while washing.

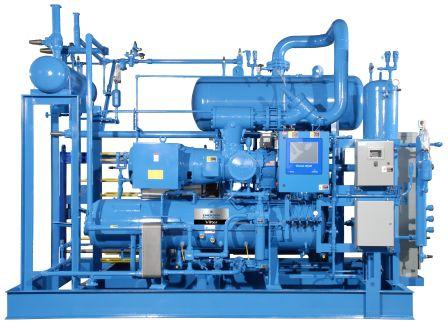

CO2 Compressor
BIG Group CO2 Compressors efficiently recover CO2 from various sources providing food grade CO2 that meets the highest quality standards in the industry. Designed to meet each customer's specific situation, the state-of-the-art CO2 recovery compressor offers the lowest production costs per liquid CO2 tonne.
Benefits:

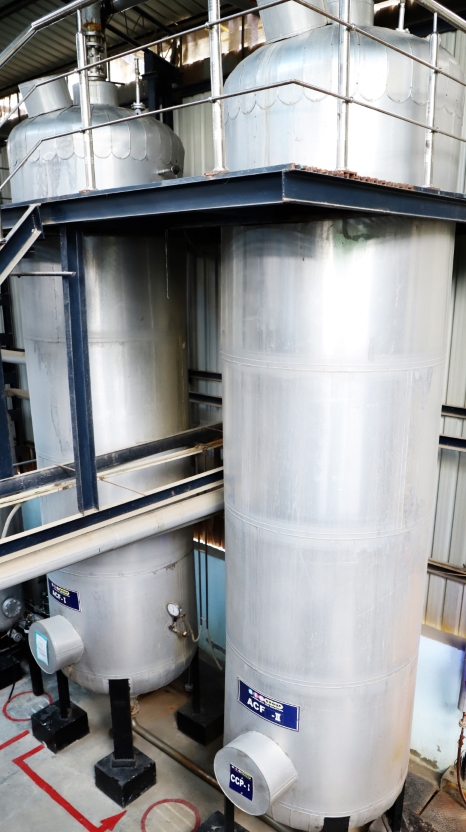

Activated Carbon Filters
Activated carbon filter beds are charged with small pieces of carbon pellets, typically in granular form, that have been treated to be extremely porous. Just one gram of activated carbon can easily have a surface area of 500 m² or higher. Vast surface area enables these carbon filters to adsorb exponentially more contaminants. The more porous the activated carbon is, the more contaminants it will capture. These beds are most notably used to remove hazardous compounds in CO2. These beds are fully automated and, in case of distilleries and breweries, these ACF beds are regenerated with steam.
Benefits:

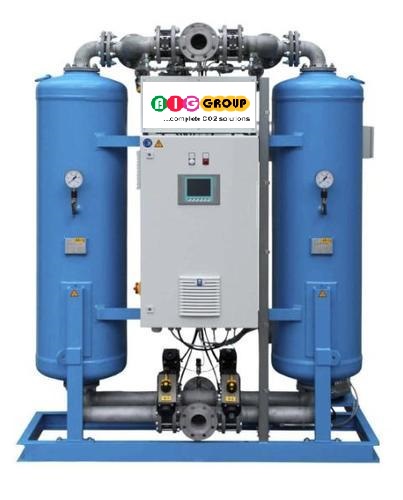

Drier Filter Towers
Drier filter towers consist of molecular sieve. This material consists of pores (very small holes) of uniform size. These pore diameters are similar in size to small molecules, and thus large molecules cannot enter or be adsorbed, while smaller molecules can. As a mixture of molecules migrates through the stationary bed of porous, semi-solid substance referred to as a sieve (or matrix), the components of highest molecular weight (which are unable to pass into the molecular pores) leave the bed first, followed by successively smaller molecules. BIG Group drier filters are designed to remove complete moisture from the running stream with results up to 0.1 PPM. The ISBT approved standard for moisture is 20 PPM, but we design our dryers to get a consistent stream of 0.1 PPM, which is a great milestone achievement in the industry.
Applications:

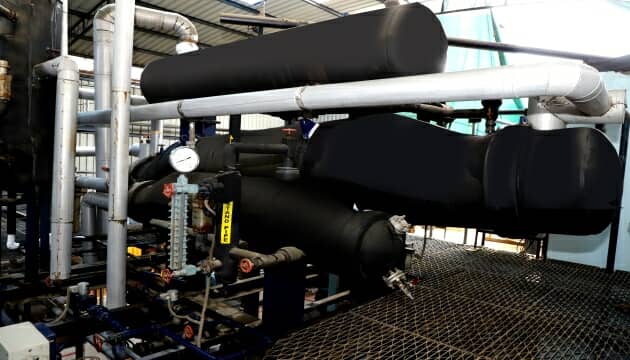

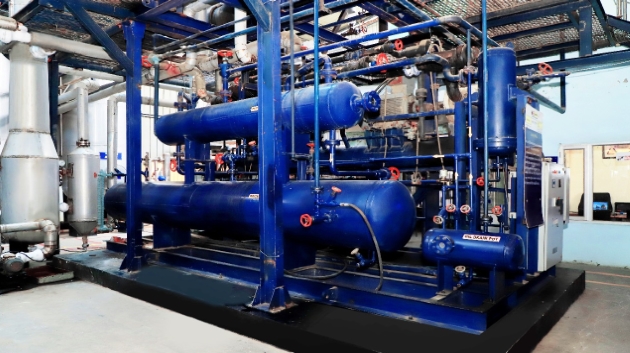

Liquification System
BIG Group screw compressor packages are used in a wide range of industrial refrigeration applications. All of our compressor packages are built to ensure maximum reliability and efficiency, operational safety, trouble-free operation, and easy maintenance. Screw compressors are positive displacement cooling system components. Single screw and twin-screw compressors are widely used in refrigeration. The screw compressor consists of one screw rotor (shaft) and a pair of gate rotors, which together with the casing form the pressurized volume which is compressed.
Highlights & Technical Features:
In addition, BIG Group screw compressors can be provided with other refrigeration system components such as evaporators, condensers, and pressure vessels in a factory-assembled, pre-piped and pre-wired package.

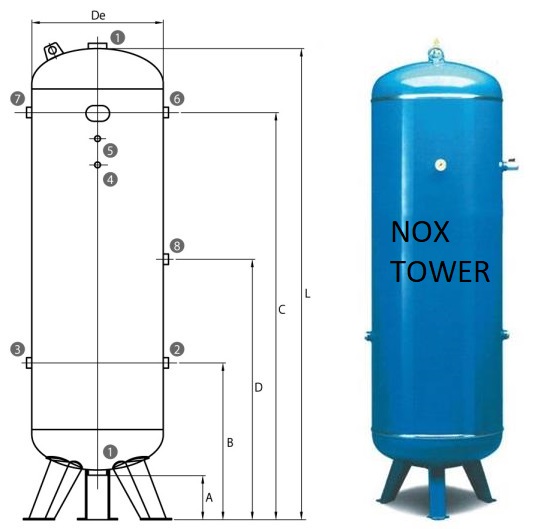

NOX Filter Towers (Nitrogen Oxides & Nitrogen Dioxides)
The NOX tower consists of a specially designed grade of molecular sieves. It adsorbs molecules with a kinetic diameter of less than 9 Angstroms and excludes the larger ones, which is exclusively suitable for the removal of NOx compounds in Liquid Carbon Dioxide.
Applications:
